Product Features
▲ Embedded software design to ensure functional stability.

▲ Safety self-test function: Continuously perform circuit self-test, automatically detect product component failures to ensure that no error signals are sent to control equipment.

▲ Digital display, real-time monitoring of display grating conditions.

▲ Using software program burning control, the response speed is faster than traditional gratings, and the response time for each light bead to emit light is only: 0.2ms.

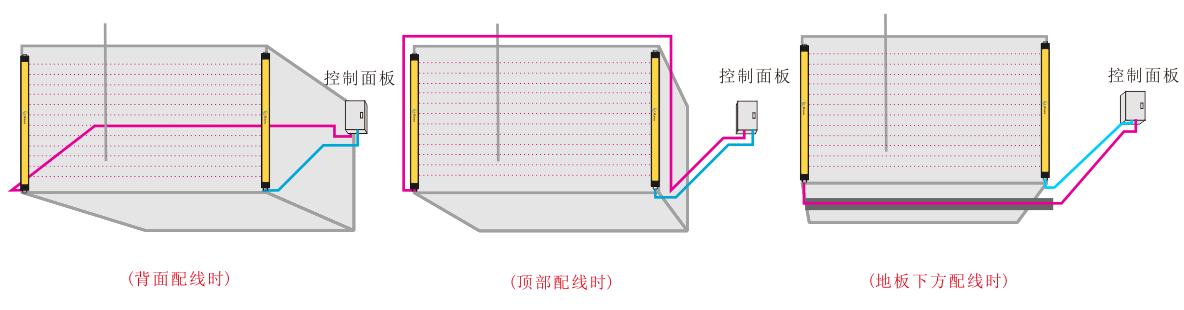

▲ Easy installation: It can be installed up, down, left, and right according to the device.

▲ Ultra small design: The product specifications are only 12mm * 25mm.

▲ Anti short circuit error correction design: All products in the series can prevent short circuits and provide wrong connection protection (rated voltage 24V, cannot be connected to 220V) to ensure that customers make accidental operation errors.

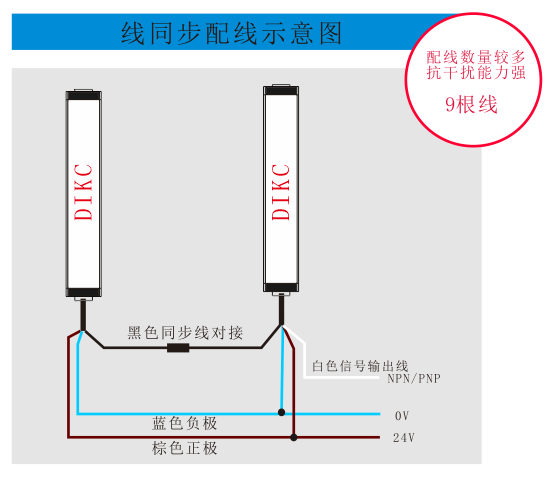

Line synchronization system (recommended for use on small devices)

1. Synchronous line needs to be assembled

2. Enhanced anti-interference ability

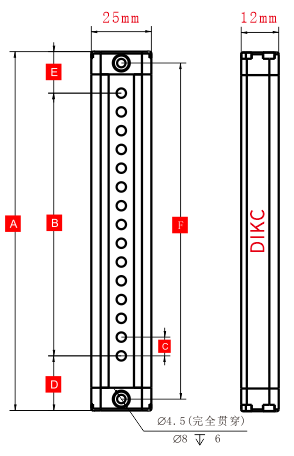

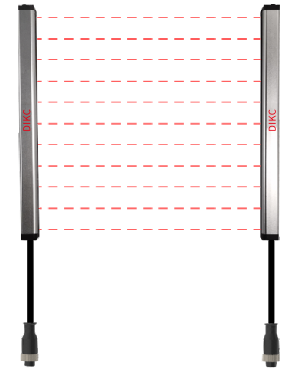

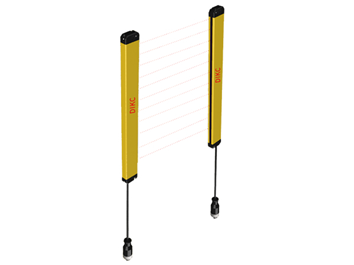

Product appearance
Universal safety grating 12mmx25mm

purpose		Distance series
When the distance to the source of danger is relatively close Test object013mm(Finger detection)		10 MM series
When the distance to the source of danger is relatively close Test sample O23mm(Palm detection)		20 MM series
When the distance to the source of danger is relatively close Test object043mm(Arm, Foot, Body Testing)		40 MM series

Select the appropriate output signal based on the power supply of the device

Output format	Light curtain status	Light receiver indicator light	Output transistor status		Voltage form
NPN normally closed type	Light up	Green light on	ON	Output level ≤ 1V	Low level
	shading	on shaky ground	0FF	Suspended, leakage current ≤ 2mA
NPN normally open type	Light up	Green light on	0FF	Suspended, leakage current ≤ 2mA
	shading	on shaky ground	0N	Output level ≤ 1V
PNP normally closed type	Light up	Green light on	ON	Output level ≤ 24V	High level
	shading	on shaky ground	0FF	Suspended, leakage current ≤ 2mA
PNP normally open type	Light up	Green light on	0FF	Suspended, leakage current ≤ 2mA
	shading	on shaky ground	ON	Output level ≤ 24V

For various signals such as double NPN normally closed, double NPN normally open, double PNP normally closed, double PNP normally open, relay normally open, relay normally closed, etc., please consult our company
