▲ Suitable for small installation spaces, compact and beautiful.
▲ Adopting both line synchronization and light synchronization types, optional for placing an order.
▲ It can provide various size detection for fingers, palms, arms, etc.
▲ Multiple protection heights and multiple output signal modes to choose from.
▲ Has super strong anti-interference ability, with a maximum distance of 5 meters.
▲ Can be quickly customized according to various non-standard needs of customers.
▲ Safety self-test function: Continuously perform circuit self-test, automatically detect product component failures to ensure that no error signals are sent to control equipment.
▲ Digital display, real-time monitoring of display grating conditions.
▲ Using software program burning control, the response speed is faster than traditional gratings, and the response time for each light bead to emit light is only: 0.2ms.
▲ Easy installation: It can be installed up, down, left, and right according to the device.
▲ Ultra small design: The product specification is only 30mm * 30mm.
▲ The full range of products can be customized according to customer needs: products without blind spots and those with blind spots can be provided to ensure safer areas.
▲ Non standard customization: Different signal outputs and non-standard customization requirements can be customized according to customer requirements, and intelligent light curtains can be customized at will.
▲ Anti short circuit error correction design: All products in the series can prevent short circuits and provide wrong connection protection (rated voltage 24V, cannot be connected to 220V) to ensure that customers make accidental operation errors.

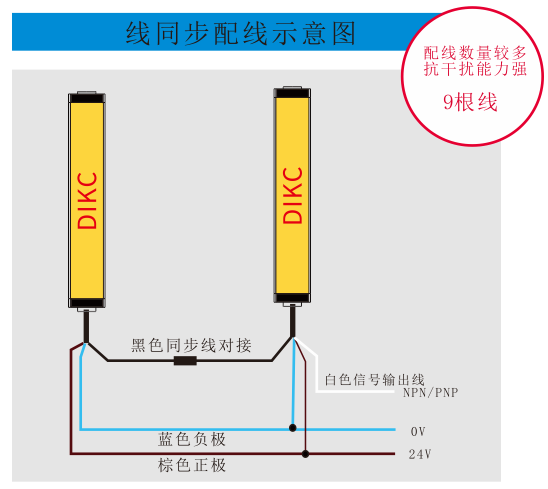

Line synchronization system (recommended for use on small devices)
1. Synchronous line needs to be assembled
2. Enhanced anti-interference ability

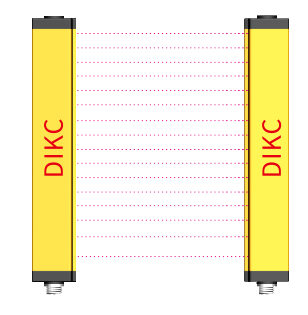

Product appearance
Universal safety grating 30mmx30mm
| Purpose | Distance series | |
|
When the distance to the source of danger is relatively close Test object X15mm (finger detection) |
|
10MM series |
|
When the distance to the source of danger is relatively close Test sample O25mm (palm detection) |
|
20MM series |
|
When the distance to the source of danger is relatively close Object O35mm (arm detection) |
|
30MM series |
|
When the distance to the source of danger is relatively close Test object ⊗ 45 mm (arm, foot, body testing) |
|
40MM series |
Explanation of the Composition of Safety Grating Models
FGL Standard Grating Selection Table
| Beam pitch | 10mm | 20mm | 30mm | 40mm | ||||||||
| Number of optical axes | Model | Protection height(mm) | Total height(mm) | Model |
Protection height (mm) |
Total height (mm) |
Model |
Protection height (mm) |
Total height (mm) |
Model |
Protection height (mm) |
Total height (mm) |
| 4 | FGL-0810 | 70 | 122 | FGL-0420 | 60 | 112 | FGL-0430 | 90 | 142 | FGL-0440 | 120 | 77 |
| 6 | FGL-1010 | 90 | 142 | FGL-0620 | 100 | 152 | FGL-0630 | 150 | 202 | FGL-0640 | 200 | 257 |
| 8 | FGL-1210 | 110 | 162 | FGL-0820 | 140 | 192 | FGL-0830 | 210 | 262 | FGL-0840 | 280 | 337 |
| 10 | FGL-1410 | 130 | 182 | FGL-1020 | 180 | 232 | FGL-1030 | 270 | 322 | FGL-1040 | 360 | 417 |
| 12 | FGL-1610 | 150 | 202 | FGL-1220 | 220 | 272 | FGL-1230 | 330 | 382 | FGL-1240 | 440 | 497 |
| 14 | FGL-1810 | 170 | 222 | FGL-1420 | 260 | 312 | FGL-1430 | 390 | 442 | FGL-1440 | 520 | 577 |
| 16 | FGL-2010 | 190 | 242 | FGL-1620 | 300 | 352 | FGL-1630 | 450 | 502 | FGL-1640 | 600 | 557 |
| 18 | FGL-2210 | 210 | 262 | FGL-1820 | 340 | 392 | FGL-1830 | 510 | 562 | FGL-1840 | 580 | 737 |
| 20 | FGL-2410 | 230 | 282 | FGL-2020 | 380 | 432 | FGL-2030 | 570 | 522 | FGL-2040 | 760 | 817 |
| 22 | FGL-2610 | 250 | 302 | FGL-2220 | 420 | 472 | FGL-2230 | 630 | 582 | FGL-2240 | 840 | 897 |
| 24 | FGL-2810 | 270 | 322 | FGL-2420 | 460 | 512 | FGL-2430 | 590 | 742 | FGL-2440 | 920 | 977 |
| 26 | FGL-3010 | 290 | 342 | FGL-2620 | 500 | 552 | FGL-2630 | 760 | 802 | FGL-2640 | 1000 | 1067 |
| 28 | FGL-3210 | 310 | 362 | FGL-2820 | 540 | 592 | FGL-2830 | 810 | 862 | FGL-2840 | 1080 | 1137 |
| 30 | FGL-3410 | 330 | 382 | FGL-3020 | 580 | 632 | FGL-3030 | 870 | 922 | FGL-3040 | 1160 | 1217 |
| 32 | FGL-3610 | 350 | 402 | FGL-3220 | 520 | 672 | FGL-3230 | 930 | 982 | FGL-3240 | 1240 | 1297 |
| 34 | FGL-3810 | 370 | 422 | FGL-3420 | 560 | 712 | FGL-3430 | 990 | 1042 | FGL-3440 | 1320 | 1357 |
| 36 | FGL-4010 | 390 | 442 | FGL-3620 | 700 | 752 | FGL-3630 | 1050 | 1102 | FGL-3540 | 1400 | 1437 |
| 38 | FGL-4210 | 410 | 462 | FGL-3820 | 740 | 792 | FGL-3830 | 1110 | 1162 | FGL-3840 | 1480 | 1517 |
| 40 | FGL-4410 | 430 | 482 | FGL-4020 | 780 | 832 | FGL-4030 | 1170 | 1222 | FGL-4040 | 1560 | 1597 |
| 42 | FGL-4610 | 450 | 502 | FGL-4220 | 820 | 872 | FGL-4230 | 1230 | 1282 | FGL-4240 | 1640 | 1677 |
| 44 | FGL-4810 | 470 | 522 | FGL-4420 | 860 | 912 | FGL-4430 | 1290 | 1342 | FGL-4440 | 1720 | 1757 |
| 46 | FGL-5010 | 490 | 542 | FGL-4620 | 900 | 952 | FGL-4630 | 1350 | 1402 | FGL-4640 | 1800 | 1837 |
| 48 | FGL-5210 | 510 | 562 | FGL-4820 | 940 | 992 | FGL-4830 | 1410 | 1462 | FGL-4840 | 1880 | 1917 |
| 50 | FGL-5410 | 530 | 582 | FGL-5020 | 980 | 1032 | FGL-5030 | 1470 | 1522 | FGL-5040 | 1960 | 1997 |
| 52 | FGL-5610 | 550 | 502 | FGL-5220 | 1020 | 1072 | FGL-5230 | 1530 | 1582 | FGL-5240 | 2040 | 2077 |
| 54 | FGL-5810 | 570 | 522 | FGL-5420 | 1060 | 1112 | FGL-5430 | 1590 | 1642 | FGL-5440 | 2120 | 2157 |
| 56 | FGL-6010 | 590 | 542 | FGL-6620 | 1100 | 1152 | FGL-5630 | 1660 | 1702 | FGL-6640 | 2200 | 2237 |
| 58 | FGL-6210 | 610 | 562 | FGL-5820 | 1140 | 1192 | FGL-5830 | 1710 | 1762 | FGL-5840 | 2280 | 2317 |
| 60 | FGL-6410 | 630 | 582 | FGL-6020 | 1180 | 1232 | FGL-6030 | 1770 | 1822 | FGL-6040 | 2360 | 2397 |
| 62 | FGL-6610 | 550 | 702 | FGL-6220 | 1220 | 1272 | FGL-6230 | 1830 | 1882 | FGL-6240 | 2440 | 2477 |
| 64 | FGL-6810 | 670 | 722 | FGL-6420 | 1260 | 1312 | FGL-6430 | 1890 | 1942 | FGL-6440 | 2520 | 2557 |
| 56 | FGL-7010 | 690 | 742 | FGL-6620 | 1300 | 1352 | FGL-6630 | 1950 | 2002 | FGL-6640 | 2600 | 2637 |
| 68 | FGL-7210 | 710 | 762 | FGL-6820 | 1340 | 1392 | FGL-6830 | 2010 | 2062 | FGL-6840 | 2680 | 2717 |
| 70 | FGL-7410 | 730 | 782 | FGL-7020 | 1380 | 1432 | FGL-7030 | 2070 | 2122 | FGL-7040 | 2760 | 2797 |
| 72 | FGL-7610 | 750 | 802 | FGL-7220 | 1420 | 1472 | FGL-7230 | 2130 | 2182 | FGL-7240 | 2840 | 2877 |
| Note: The optical axis spacing of this model of product includes various types such as 10mm+20mm, 30m # 40mm, which are not fully reflected in the selection table. If your selection is not included, you can select it for you through the selection rules or contact us. (Above dimensions do not include aviation plug 33mm) | ||||||||||||
| Beam pitch | 10mm | 20mm | 30mm | 40mm |
| Grating type | Universal safety grating | |||
| Shell size | 30mm×30mm | |||
| Product color | Yellow/Anodized (Silver) (optional) | |||
| Protection level | IP65/IP67 (optional) | |||
| working voltage | 10-30VDC | |||
| response time | ≤10Ms | |||
| signal output | NPN/PNP/Relay (optional) | |||
| Synchronization type | Optical synchronization/line synchronization (optional) | |||
| Protection height | 70mm-2994mm | |||
| Number of optical axes | 8-292 bundles |
6-148 bundles |
4-98 bundles |
4-74 bundles |
| Shooting distance | 0.01-3 meters/0.01-5 meters | |||
| Light curtain form | Shooting style | |||
| Use environmental lighting level | Incandescent lamp: below 3000Lux, sunlight: 20000Lux | |||
| Exterior Material | Aluminum alloy/plastic/hardware | |||
| Circuit protection | Power reverse protection/output short circuit protection | |||
| Working environment temperature | -25 ℃~70 ℃ (no freezing) | |||
| Power consumption | 3-8W | |||
| Storage environment temperature | 20C. RH≤85% | |||
| Maximum load current | 200mA | |||

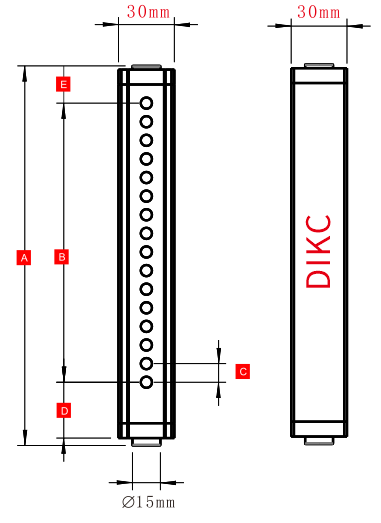

Outline dimension diagram
Main body 30mmX30mm (A/C/D/F series)
N: Representative Points
A: Representing the total length of the shell
B: Representing effective height
C: Representing the distance between optical axes
D: Representing blind spots (including end caps)
E: Representing blind spots (including end caps)
The table is as follows:
| Number of optical axis points | A(Total length) | B(Effective length) | C(Optical axis spacing) | D(Blind spot below) | E(Upper blind spot) |
| N | B+D+E | N×10-10 | 10mm | 37mm | 15mm |
| N | B+D+E | N×20-20 | 20mm | 32mm | 20mm |
| N | B+D+E | N×30-30 | 30mm | 27mm | 25mm |
| N | B+D+E | N×40-40 | 40mm | 27mm | 30mm |
| picture | Product Name | length | quantity | Factory settings |
|
Transmitter signal cable | 2.5 meters | 1 item | yes |
|
Receiver signal cable | 3.5 meters | 1 item | yes |
|
Upper and lower brackets (side mounted brackets with additional brackets) are optional | 4 pieces | yes | |
 |
T-shaped nut | 12 pieces | yes | |
|
M6 screw | 8 pieces | yes | |
|
instructions | 1 copy | yes |
|
