▲ Safety self-test function: Continuously perform circuit self-test, automatically detect product component failures to ensure that no error signals are sent to control equipment.

▲ Using software program burning control, the response speed is faster than traditional gratings, and the response time for each light bead to emit light is only: 0.2ms.

▲ Easy installation: It can be installed up, down, left, and right according to the device.

▲ Ultra small design: The product specifications are only 30mm * 29mm.

▲ The full range of products can be customized according to customer needs: products without blind spots and those with blind spots can be provided to ensure safer areas.

▲ Non standard customization: Different signal outputs and non-standard customization requirements can be customized according to customer requirements, and intelligent light curtains can be customized at will.

▲ Anti short circuit error correction design: All products in the series can prevent short circuits and provide wrong connection protection (rated voltage 24V, cannot be connected to 220V) to ensure that customers make accidental operation errors.

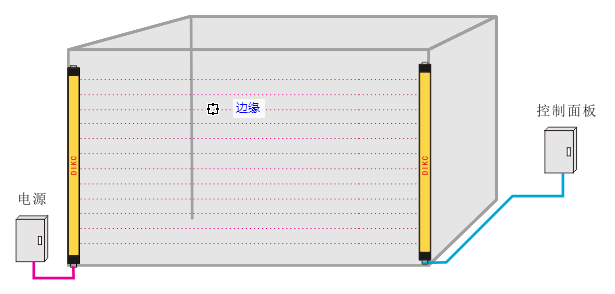

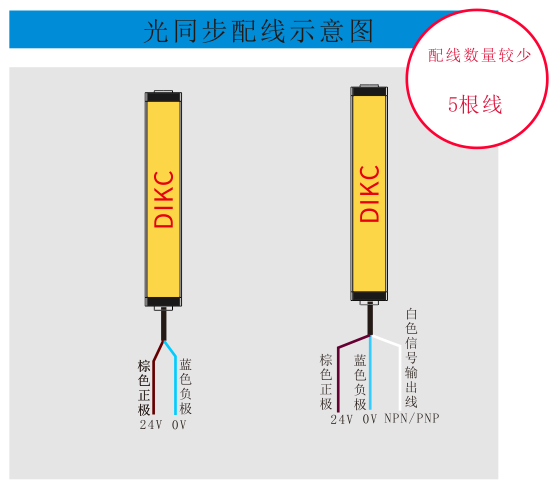

Optical synchronization system (recommended for use on large equipment)

● No need to assemble a synchronous line

The assembly of cables is simple and easy to carry out

The transmitter and receiver can use different power sources for incoming wiring

The assembly of cables is simple and easy to carry out

1. Can reduce the risk of wire breakage

2. Wiring can avoid power sources (noise sources)

3. Shortened the operation and testing time

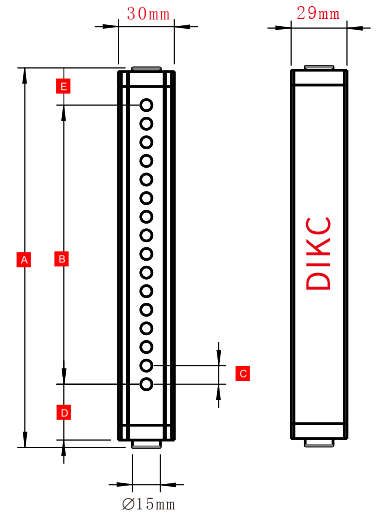

Product appearance

Universal safety grating 30mmx29mm

Purpose:		Distance series
When the distance to the source of danger is relatively close Object O15mm (finger detection)		10MM series
When the distance to the source of danger is relatively close Test sample O25mm (palm detection)		20MM series
When the distance to the source of danger is relatively close Object O45mm (arm, foot, body detection)		40MM series
