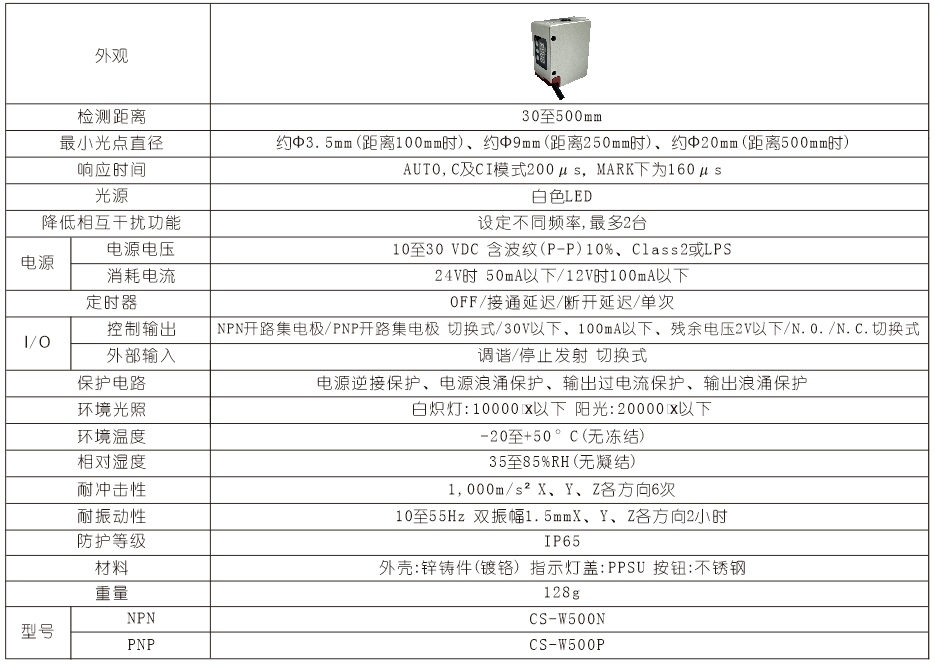

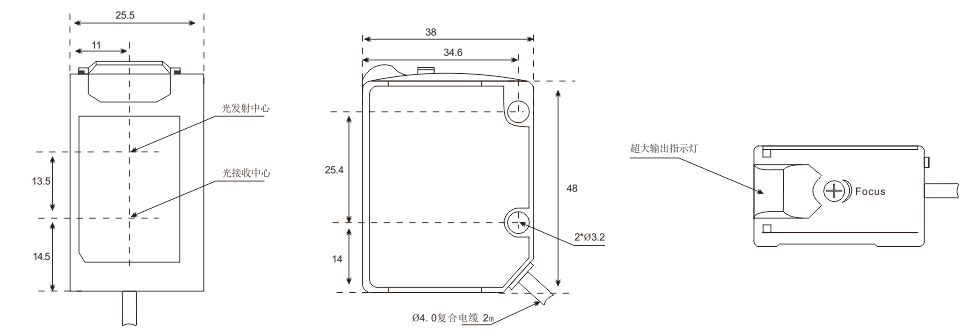

The size is 1.5 * 7 linear light spot, suitable for detection in different application environments;

▲ Long distance detection, with a detection range of up to 500mm;

▲ Eliminating the influence of shaking on the detected object by adjusting accuracy, with high anti shake performance and background suppression function;

Accurate recognition and stable and reliable detection of object edges or critical positions of two different colors;

▲ White LED light source has a wide wavelength range, which can stably test color or appearance differences;

Product application

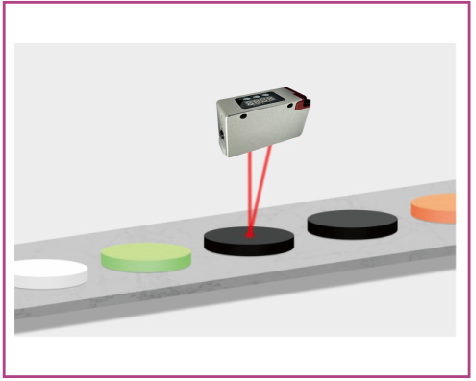

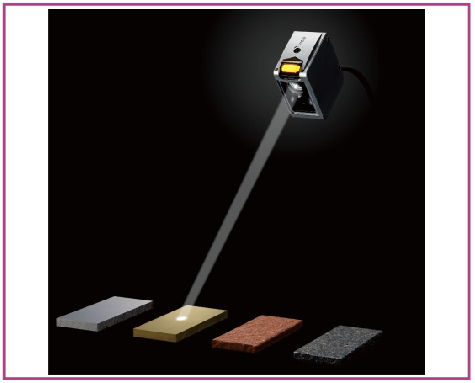

Detecting the color blocks of the target object on the conveyor belt


Long distance detection can also be very stable

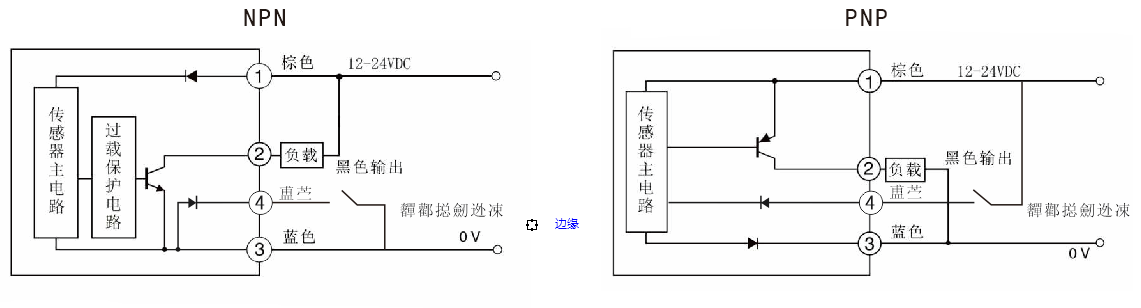

Operation menu

Set sensitivity in the display menu. In Mark mode, perform two-point calibration: in MARK mode, the STB C I indicator light in the STB C I indicator light will light up and the C I indicator light will turn off. Indicates that the working mode is in the MARK color code state.

Step 1, align the cursor with the color code to be detected and press the SET button. The display screen will flash and show the word SET1

Step 2, move the cursor to the background and press the SET button. Then the sensor will automatically select the appropriate receiving channel (R, G, or B channel), while remembering that the threshold display screen will alternate between displaying the threshold and the receiving channel. If R is displayed, it indicates that the red channel is selected, or if G is displayed, the green channel is selected, and B indicates that the blue channel is selected.

In C and CI color modes: two-point calibration:

Aim the cursor directly at the color code to be detected and press the SET button. The display screen shows the word SET1. Then align the light spot with the background and press the SET button again. The sensor will determine the threshold and display it. The default threshold is 900 When CI is selected as the working mode, all three indicator lights of STB C I will light up. If the working mode is selected as C mode, only STB C will light up, and I will not light up.

Initialization setting: In display mode, press MODE SET for three seconds, and the screen will display: init， Indicates a return to factory default mode.
