▲ The size is 1.5 * 7 linear light spot, suitable for detection in different application environments;

▲ Long detection distance, with a detection range of 18-28mm;

▲ By adjusting the accuracy to eliminate the influence of shaking on the detected object, the anti shake performance is high;

▲ Accurate recognition and stable and reliable detection of object edges or critical positions of two different colors;

▲ Equipped with two detection modes of color and color standard, the performance is greatly superior to ordinary color standards;

▲ Two point setting, simple and convenient, compact in size, suitable for installation in different spaces.

Product application

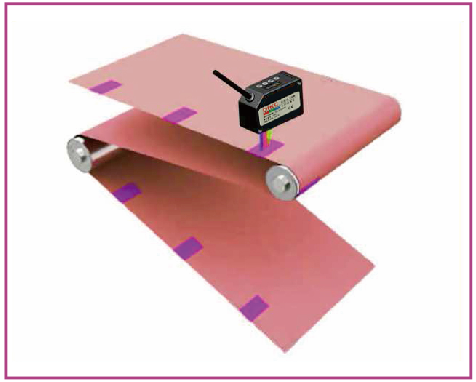

Detecting the color blocks of the target object on the conveyor belt

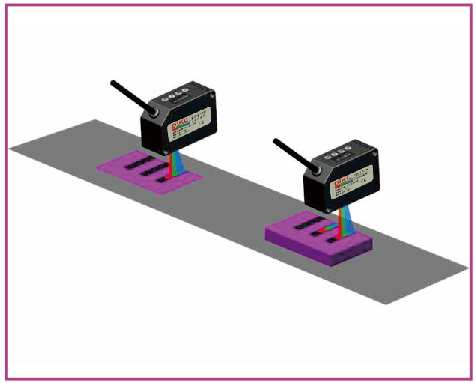

Detecting alignment marks

Operation menu
Main menu function: Press and hold the MODE button for more than three seconds, and the menu will display A-H. If you press UP or DOWN, A-L, A-H, and A-L will appear to select sensitivity, A-H has high sensitivity, while A-L has low sensitivity. When the color code is very reflective, adjust it to A-L, and generally adjust it to A-H. Short press MODE here to enter the C CI MARK selection menu. When the object color is rich, select the C color mode; When the color code is single, choose MARK mode, and when it is necessary to distinguish between very similar color codes, choose CI mode. Both C mode and MARK mode are anti shake, while CI mode is not anti shake. Short press MODE here to enter T-2P T-1P mode. Both C CI can select 2P or 1P, but MARK mode can only select T-2P. Press MODE here to enter delay mode. Delay modes include TOFF without delay and OFFD with low delay; OND pull up delay; ONOD delays both high and low. The specific delay time can be adjusted through the UP DOWN button, ranging from 1MS to 9999MS.
