Product advantages
★ More comprehensive functions and higher performance
★ 2-channel switch and 1-channel analog output
(Meet the usage needs of various scenarios)

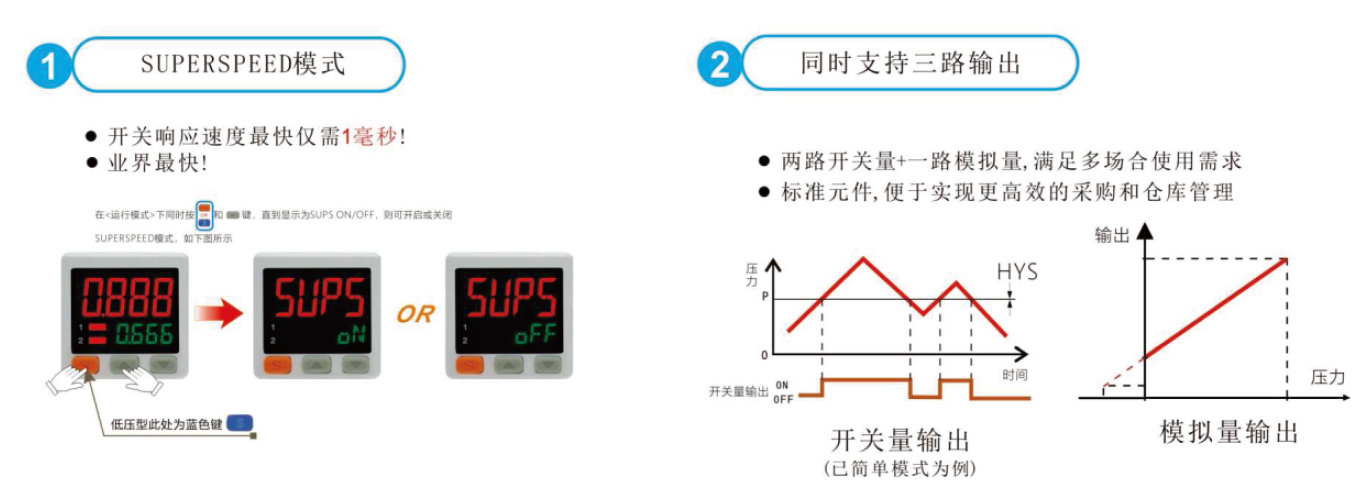

★Exclusive SUPERSPEED mode, with a maximum response time of 1ms
(Can be used for devices with high response speed requirements such as high-speed surface mount machines)
★Tri color dual screen display“
”Character display for easy information reading
Product Highlights Display
Analog output mode
| compressed air | Rated pressure range | A | B | C |
| high pressure | -0.1~1.0MPa | -0.1MPa | 0MPa | 1.0MPa |
| low pressure | -101.3kPa~101.3kPa | -101.3kPa | 101.3kPa |
| ① | Product series | 10: High precision series 20: High protection standard series (IP65) |
| ② | Pressure input range | C: -101.3~101.3KPa (low voltage type) P: -0.101~1.000KPa (high pressure type) |
| ③ | Signal output type |
010: 2-channel NPN, 1-channel analog voltage output 011: 2-channel NPN, 1-channel analog current output 020: 2-channel PNP, 1-channel analog voltage output 021: 2-channel PNP, 1-channel analog current output |
| ④ | Air pressure interface type | R: Outer R1/8, inner M5 G: Outer G1/8, Inner M5 N: Outer NPT1/8, Inner M5 |
Optional accessory model (separately selected)
1: L-shaped metal mounting bracket: XP-BT-01
2: Z-shaped metal mounting bracket: XP-BT-02
3: Panel installation bracket: XP-PA-01
| model | FP-01P (High Voltage Type) | FP-01C (Low Voltage Type) | FP-10/20P (High Voltage Type) | FP-10/20C (low voltage type) | FP-15/25P (High Voltage Type) | FP-15/25C (low voltage type) | |
| Rated pressure range | -0.101~1.000MPa | -101.3~101.3kPa | -0.101~1.000MPa | -101.3~101.3kPa | -0.101~1.000MPa | -101.3~101.3kPa | |
| Set pressure range | -0.100~1.000MPa | -101.0~101.0kPa | -0.100~1.000MPa | -101.0~101.0kPa | -0.100~1.000MRa | -101.0~101.0kPa | |
| Maximum pressure resistance | 1.5MPa | 500kPa | 1.5MPa | 500kPa | 1.5MPa | 500kPa | |
| Applicable gas | Non corrosive gas, non flammable gas, compliant with ISO8573-1:2010 [7:4:4] | ||||||
| supply voltage | 12~24V Dc±10% | ||||||
| Consumption current | Below 45mA (no load) | ||||||
|
different pressure unit Below display distinguish rate |
kPa | one | 0.1 | one | 0.1 | one | 0.1 |
| Mpa | 0.001 | - | 0.001 | one | 0.001 | - | |
| kgf/cm | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| bar | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| psi | 0.1 | 0.01 | 0.1 | 0.01 | 0.1 | 0.01 | |
| mmHg | one | 0.1 | one | 0.1 | one | 0.1 | |
| inchHg | one | 1 | one | 1 | one | 1 | |
| Compare output [Note] * 1 |
NPN open collector output PNP open collector output Maximum load current: 100mA Maximum load current: 100mA Maximum supply voltage: 30V DC Maximum supply voltage: 24V DC Internal pressure drop: below 1.5V Internal pressure drop: below 1.5V |
||||||
| Voltage type analog output [Note] * 1 |
Output voltage: 1-5V ± 2.5% F.S Linear: ± 1% F.S Output impedance: approximately 1KQ |
Output voltage: 1-5V ± 2.5% F.S Linear: ± 1% F.S Output impedance: approximately 1KQ |
not have | ||||
| Current type analog output [Note] * 1 | not have |
Auxiliary output current: 4~20mA ± 2.5% F.S Linear: ± 1% F.S Load resistance: minimum 500 Maximum 3000812V; 6000024V |
not have | ||||
| MODBUS function [Note] * 2 | not have | have | |||||
| Display Accuracy |
±1%F.S. ± 1 digits (operating temperature 25 ± 10 ℃) |
||||||
| repeatability |
±0.2%F.S. ±2digits |
||||||
| reaction time |
2.0ms,50ms,100ms, 250ms,500ms,2000ms Optional [Note] * 4 |
1ms,2.0ms,50ms,100ms, 250ms,500ms,2000ms Optional [Note] * 3 |
2.0ms,50ms,100ms, 250ms,500ms,2000ms Optional [Note] * 4 |
||||
| display | 3 colors (red, orange, yellow green) display (sampling rate: 4 times/second) | ||||||
| Temperature | Within 1% F.S., the reference temperature is 25 ℃ (within the range of 0~50 ℃) | ||||||
| Usage environment | 0~50 ℃ (no condensation, no freezing); 35-85% RH (anhydrous dew) | ||||||
| Save Environment | -10-50 ℃ (no condensation, no freezing); 35-85% RH (anhydrous dew) | ||||||
| protection grade | Ip40/IP65 * (NP-20 and NP-25 series support IP65 rating) | ||||||
| port size | External thread: R1/8 (Asian standard, i.e. PT1/8), G1/8 (European standard), NPT1/8 (North American standard) Internal thread: M5 | ||||||
| weight | About 70g (including power cable) | About 85g (including power cable) | |||||
| attachment | 1 power cable with terminal, 1 instruction manual | ||||||
[Note] * 1. The output type corresponds one-to-one with the product model. Please refer to the "Selection Guide" for details;
*2. Only the FP-15 series supports MODBUS mode, please refer to the "Product User Manual" for operation;
*3. Only when the SUPERSPEED mode is turned on can it support a response speed of 1ms. Please refer to the "Product User Manual" for instructions on turning this mode on and off;
*4. Please refer to the "Product User Manual" for the setting of response speed.
|
FP-10 C 010 R |
|
