Variable dimming type that is not affected by external light interference.

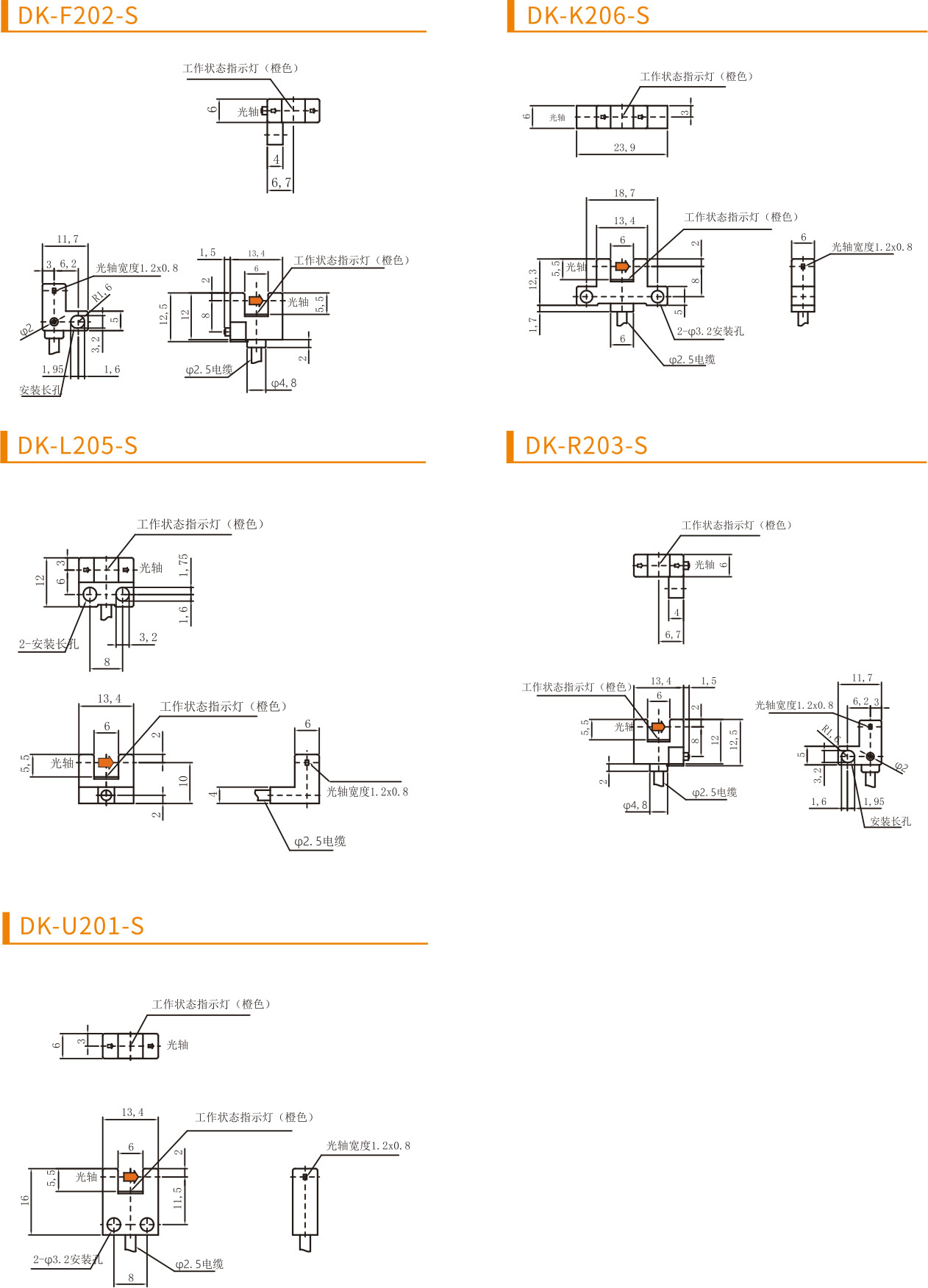

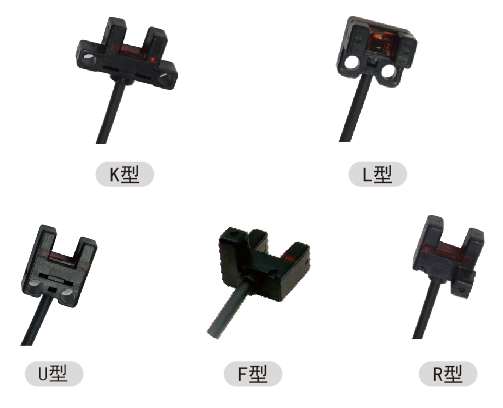

4 different shapes with a width of 6mm, suitable for various installation occasions, marking detection, liquid level detection and other applications.

All designed products have functions such as waterproof, oil proof, and dustproof.

Can detect small objects up to 0.1mm in size.

This product adopts an integrated molding process, which provides better sealing and prevents poor appearance.

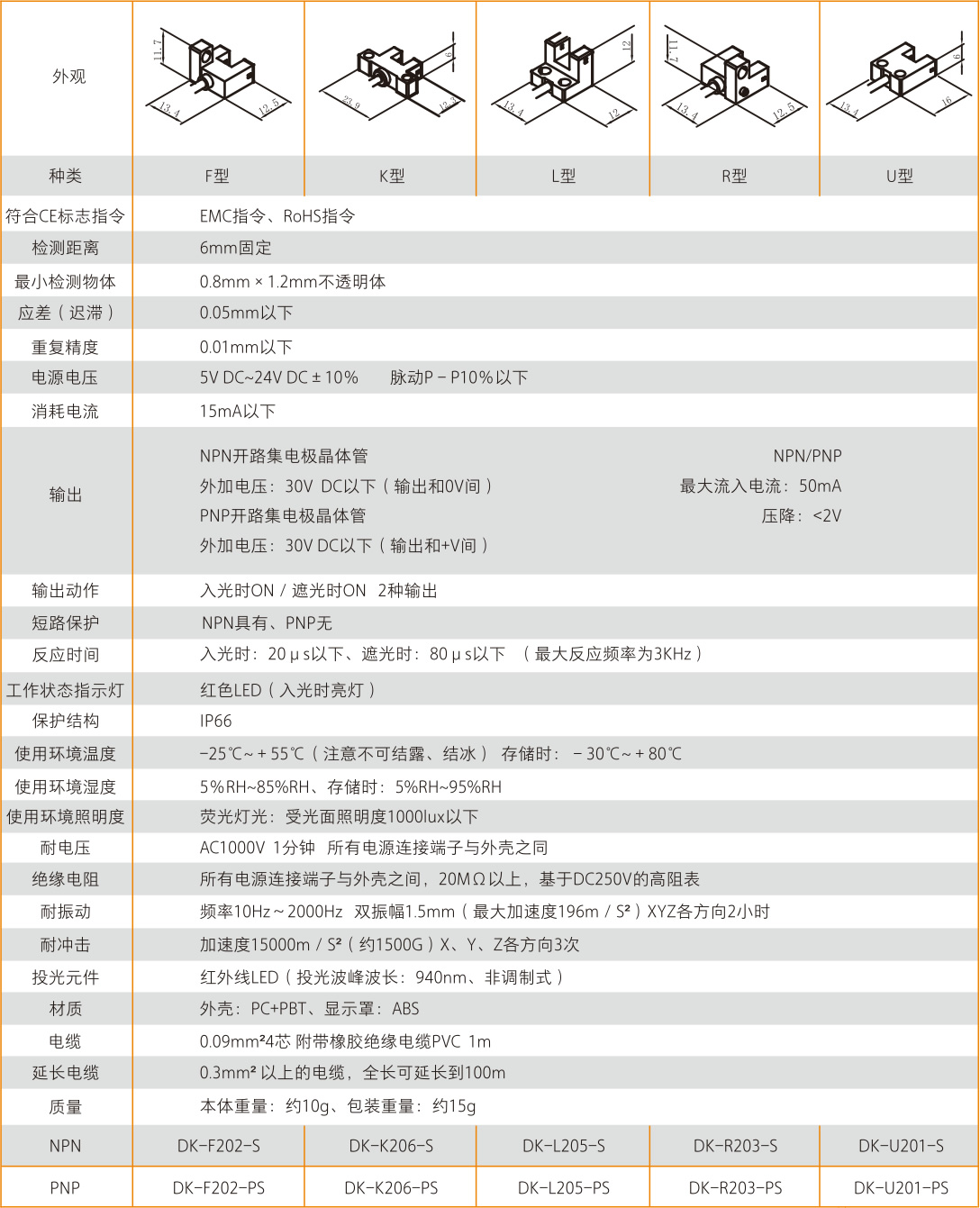

Wide voltage range

The power supply voltage range is 5~24VDC.

Ultra high speed response

High speed response with a response frequency of 3KHZ.

Product application

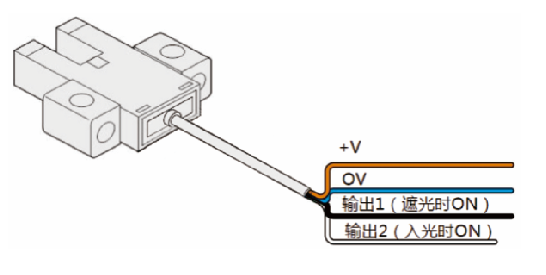

The equipment has two independent outputs

All models are equipped with two independent outputs - ON for incoming light and ON for shading, which can meet different output requirements depending on the usage location.

Attention: Only connect the cables that have been used (ON when in light or ON when out of light). For unused output lines, be sure to perform insulation treatment
