Products

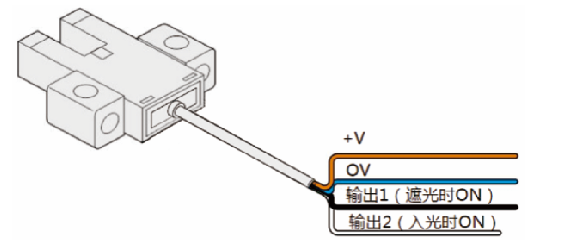

Line lead out
Standard configuration includes 2M flexible wires, with customizable wire lengths.
Optional bending resistant drag chain cable.
Optional white normally open and black normally closed.
Wide voltage range
Power supply voltage range 5~24VDC:
High speed response
High speed response with a response frequency of 3KHZ.
Product application

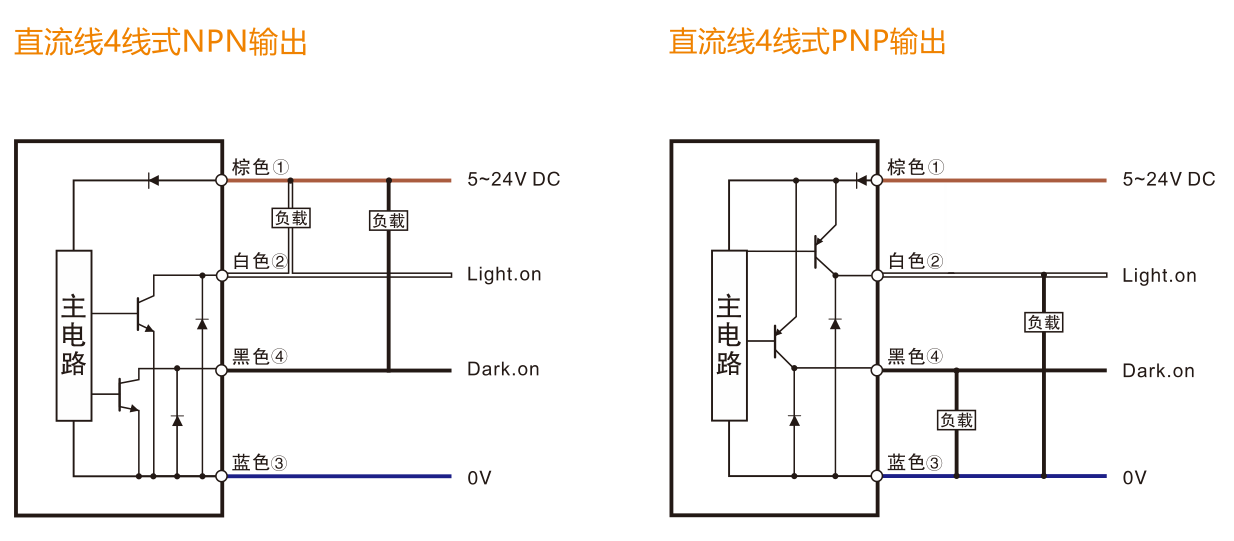

The equipment has two independent outputs
All models are equipped with two independent outputs - ON for incoming light and ON for shading, which can meet different output requirements depending on the usage location.
Attention: Only connect the cables that have been used (ON when in light or ON when out of light). For unused output lines, be sure to perform insulation treatment
Line lead out
Standard configuration includes 2M flexible wires, with customizable wire lengths.
Optional bending resistant drag chain cable.
Optional white normally open and black normally closed.
Wide voltage range
Power supply voltage range 5~24VDC:
High speed response
High speed response with a response frequency of 3KHZ.

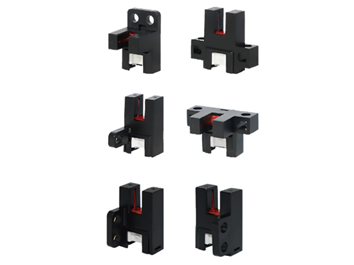

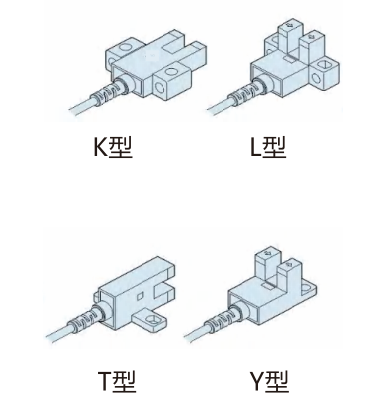

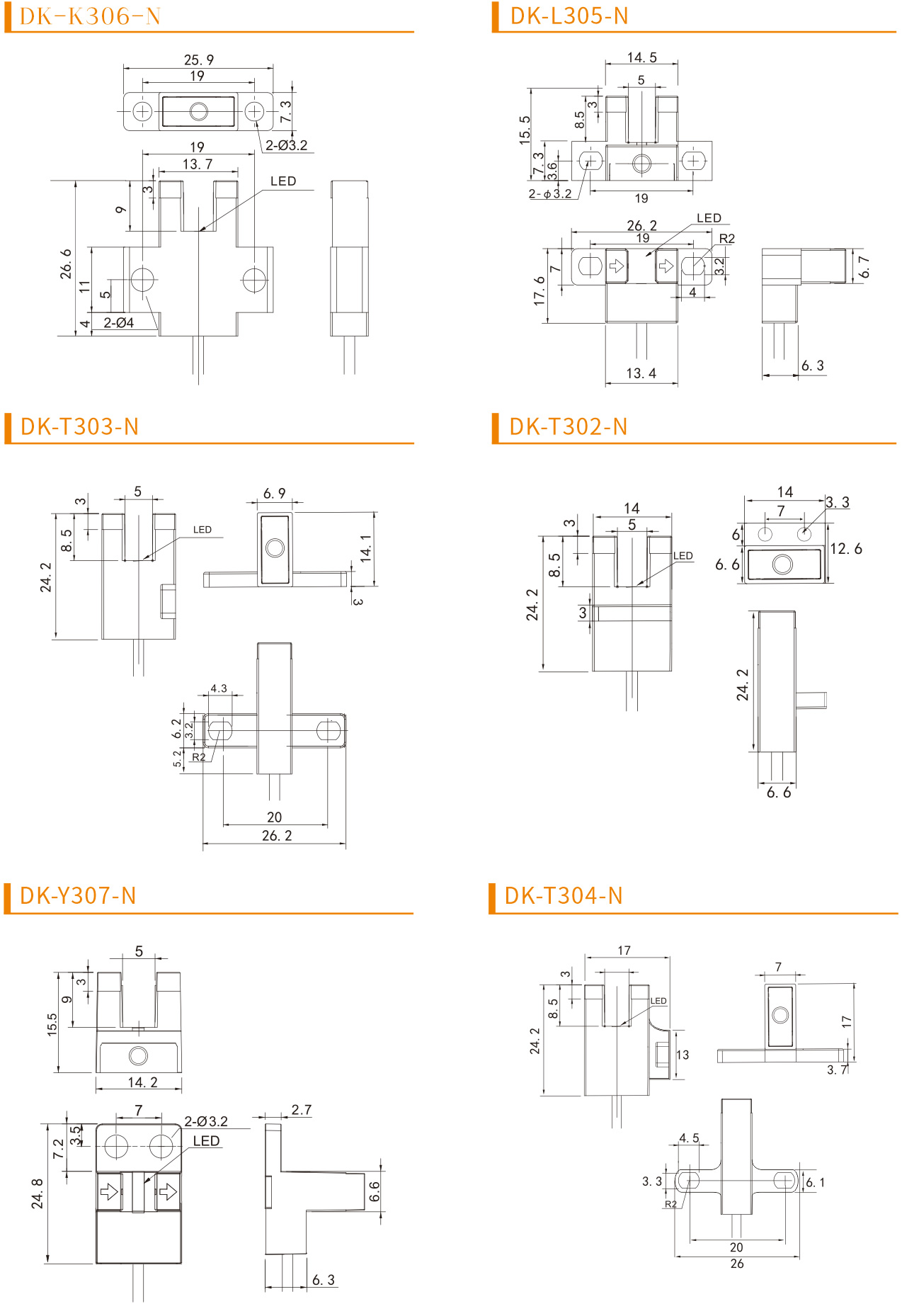

There are a wide variety of types, with up to 6 shapes, from which you can choose the model that meets your installation conditions.
|

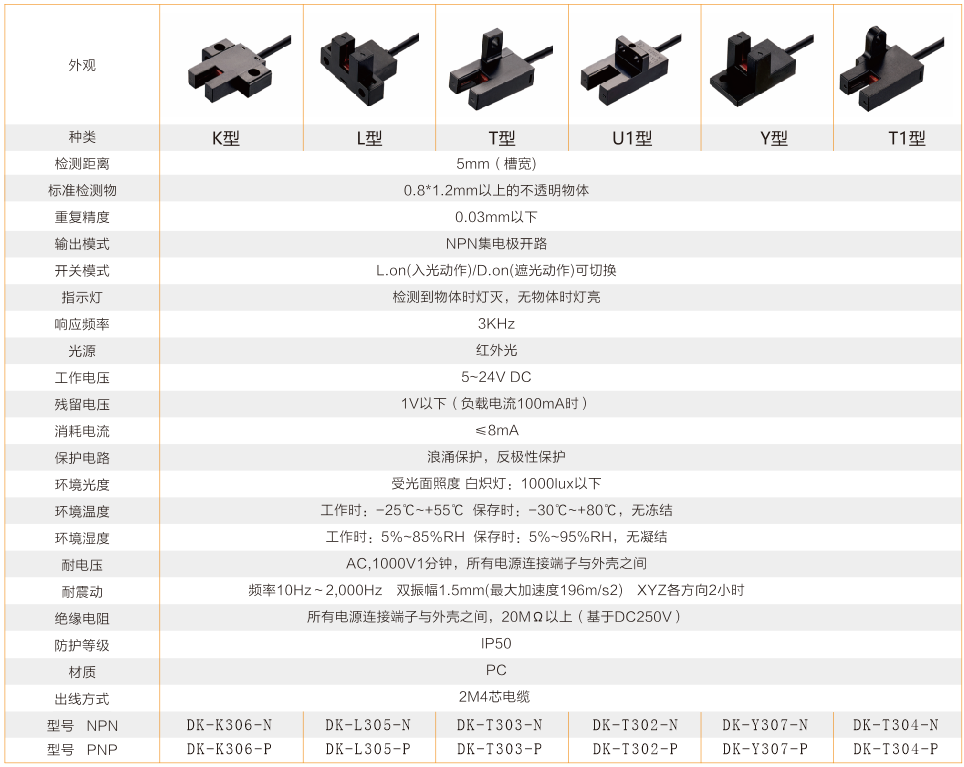

DIKC slot type photoelectric sensor standard type 300 series |
|
