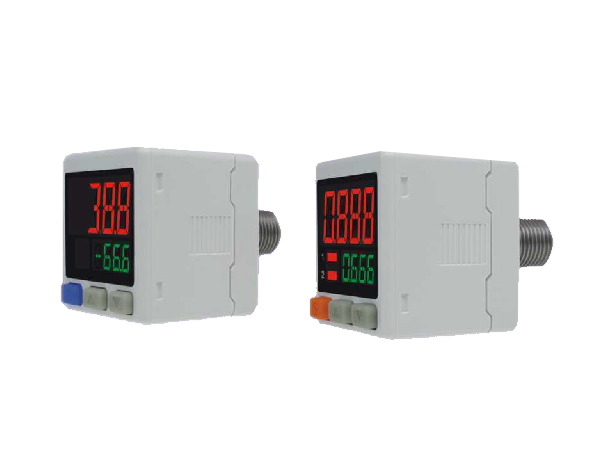

▲ New tri color dual screen display, clearer
▲ Added unit display function, more intuitive
▲ New shell structure, more space saving
▲ Added button lock icon
▲ New tri color dual screen display, clearer
▲ Added unit display function, more intuitive
▲ New shell structure, more space saving
▲ Added button lock icon

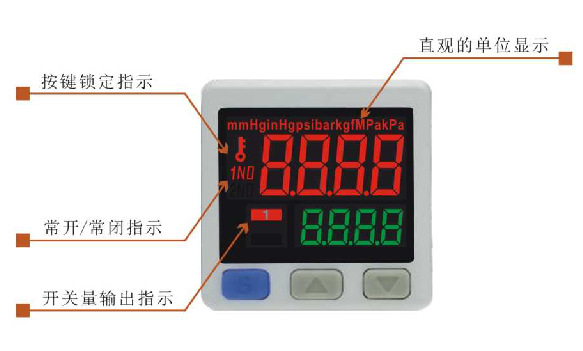

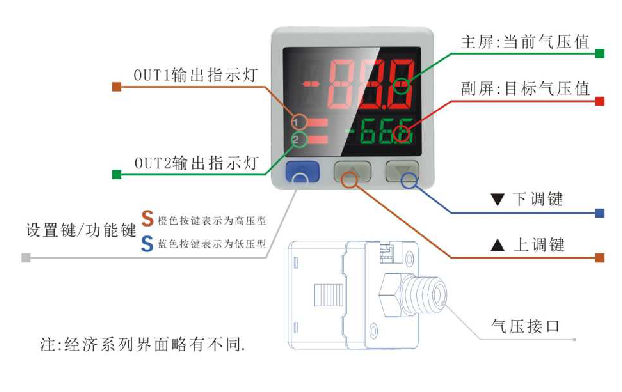

user interface

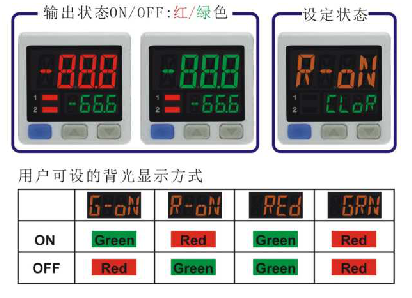

★ Three color display can highlight different working states of the product, and users can set the content and backlight display mode

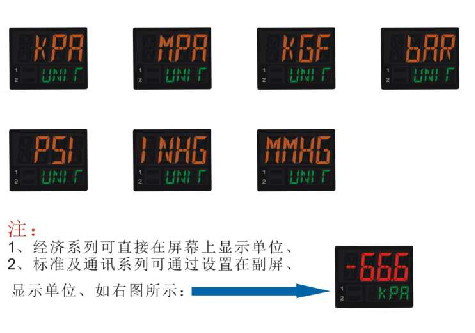

★ Double adjustable measurement units: kPa,MPa,kgf/cm',bar, psi,inHg, mmHg
Switching output mode

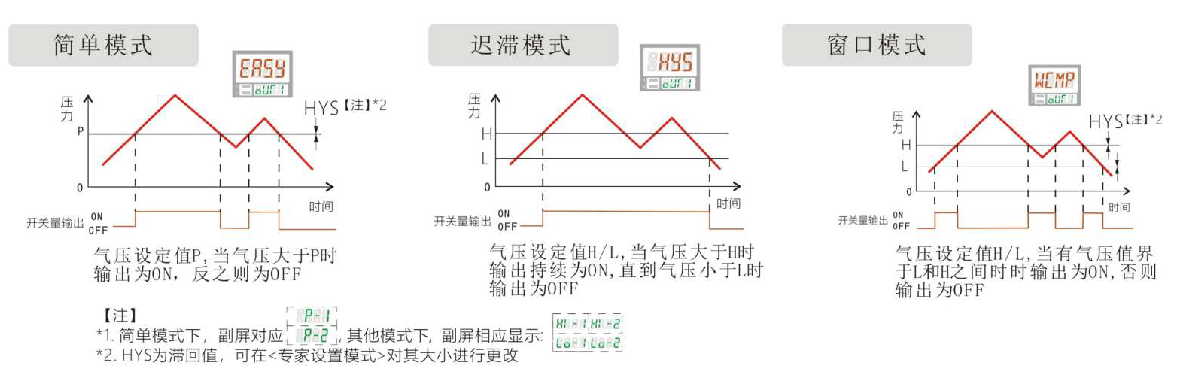

Switching output OUT1 and OUT2 [Note] * 1 can choose from three modes: "Simple Mode", "Hysteresis Mode", and "Window Mode"
| Model | FP-01P (High Voltage Type) | FP-01C (Low Voltage Type) | FP-10/20P (High Voltage Type) | FP-10/20C (low voltage type) | FP-15/25P (High Voltage Type) | FP-15/25C (low voltage type) | |
| Rated pressure range |
-0.101~1.000MPa |
-101.3~101.3kPa |
-0.101~1.000MPa |
-101.3~101.3kPa |
-0.101~1.000MPa |
-101.3~101.3kPa |
|
| Set pressure range | -0.100~1.000MPa | -101.0~101.0kPa | -0.100~1.000MPa | -101.0~101.0kPa | -0.100~1.000MRa | -101.0~101.0kPa | |
| Maximum pressure resistance | 1.5MPa | 500kPa | 1.5MPa | 500kPa | 1.5MPa | 500kPa | |
| Applicable gases | Non corrosive gas, non flammable gas, in accordance with ISO 8573-1:2010 [7:4:4] | ||||||
| supply voltage | 12～24V Dc±10% | ||||||
| Current consumption | Below 45mA (no load) | ||||||
|
Different pressure Company Below display distinguish rate |
kPa | 0.1 | 0.1 | 0.1 | |||
| Mpa | 0.001 | one | 0.001 | 0.001 | one | ||
| kgf/cm | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| bar | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| psi | 0.1 | 0.01 | 0.1 | 0.01 | 0.1 | 0.01 | |
| mmHg | - | 0.1 | one | 0.1 | one | 0.1 | |
| inchHg | one | 1 | 1 | 1 | |||
| Compare output [Note] * 1 |
N P N collector open circuit output Maximum load current: 1 0 0 mA Maximum supply voltage: 30V DC Internal pressure drop: 1 . Below 5V |
P N P collector open circuit output Maximum load current: 1 0 0 mA Maximum supply voltage: 24V DC Internal pressure drop: 1 . Below 5V |
|||||
| Voltage type analog output [Note] * 1 |
Output voltage: 1-5V ± 2.5% F.S Linear: ± 1% F.S Output impedance: approximately 1KQ |
Output voltage: 1-5V ± 2.5% F.S Linear: ± 1% F.S Output impedance: approximately 1KQ |
nothing | ||||
| Current type analog output [Note] * 1 | nothing |
Output current: 4~20mA ± 2 5%F . S . Linear: ± 1% F.S Load resistance: minimum 500 maximum 3000@12V ; 6000@24V |
nothing | ||||
| MODBUS function [Note] * 2 | nothing | have | |||||
| Display accuracy |
±1%F.S. ± 1 digits (operating temperature 25 ± 10 ℃) |
||||||
| Repetitive accuracy |
±0.2%F.S. ±2digits |
||||||
| reaction time |
2.0ms,50ms,100ms, 250ms,500ms,2000ms Optional [Note] * 4 |
1ms,2.0ms,50ms,100ms, 250ms,500ms,2000ms Optional [Note] * 3 |
2.0ms,50ms,100ms, 250ms,500ms,2000ms Optional [Note] * 4 |
||||
| display | 3 colors (red, orange, yellow green) display (sampling rate: 4 times/second) | ||||||
| temperature characteristic | Within 1% F.S., the reference temperature is 25 ℃ (within the range of 0~50 ℃) | ||||||
| Usage environment | 0~50 ℃ (no condensation, no freezing); 35-85% RH (anhydrous dew) | ||||||
| Save environment | -10-50 ℃ (no condensation, no freezing); 35-85% RH (anhydrous dew) | ||||||
| Protection level | Ip40/IP65 * (NP-20 and NP-25 series support IP65 rating) | ||||||
| Pipe Size | External thread: R1/8 (Asian standard, i.e. PT1/8), G1/8 (European standard), NPT1/8 (North American standard) Internal thread: M5 | ||||||
| weight | About 70g (including power cable) | About 85g (including power cable) | |||||
| enclosure | 1 power cable with terminal, 1 instruction manual | ||||||
| [Note] * 1. The output type corresponds one-to-one with the product model. Please refer to the "Selection Guide" for details; | |||||||
| *2. OnlyFP-15 Series supportMODBUS Mode, please refer to the "Product User Manual" for its operation; | |||||||
|
*3. Open itSUPERSPEEDThe mode can only support 1msFor the response speed of this mode, please refer to the "Product User Manual" for the opening and closing of this mode; *4. Please refer to the "Product User Manual" for the setting of response speed. |
|||||||
|
