▲ Strong locking force of 1300N.
▲ Six types of contact points are available for selection.
▲ Emergency unlocking function of indicator light.

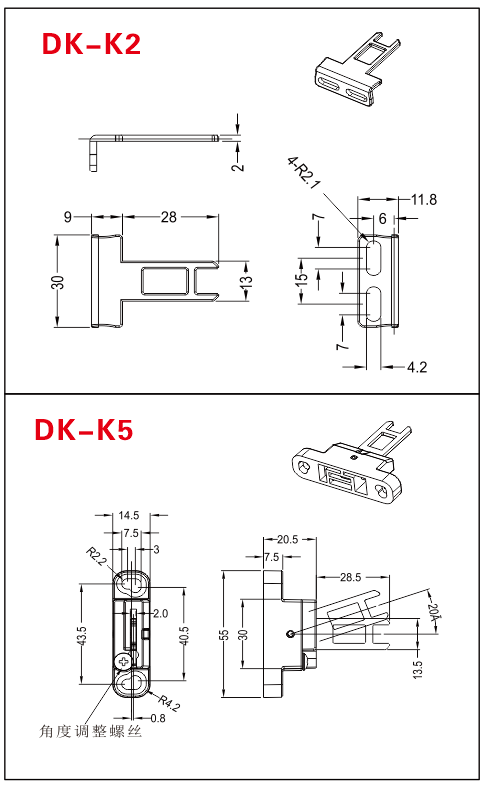

▲ Compatible with 6 types of operation keys.
▲ Strong locking force of 1300N.
Six types of contact points are available for selection.
▲ Emergency unlocking function of indicator light.
▲ Compatible with 6 types of operation keys.
Action circuit and action characteristics

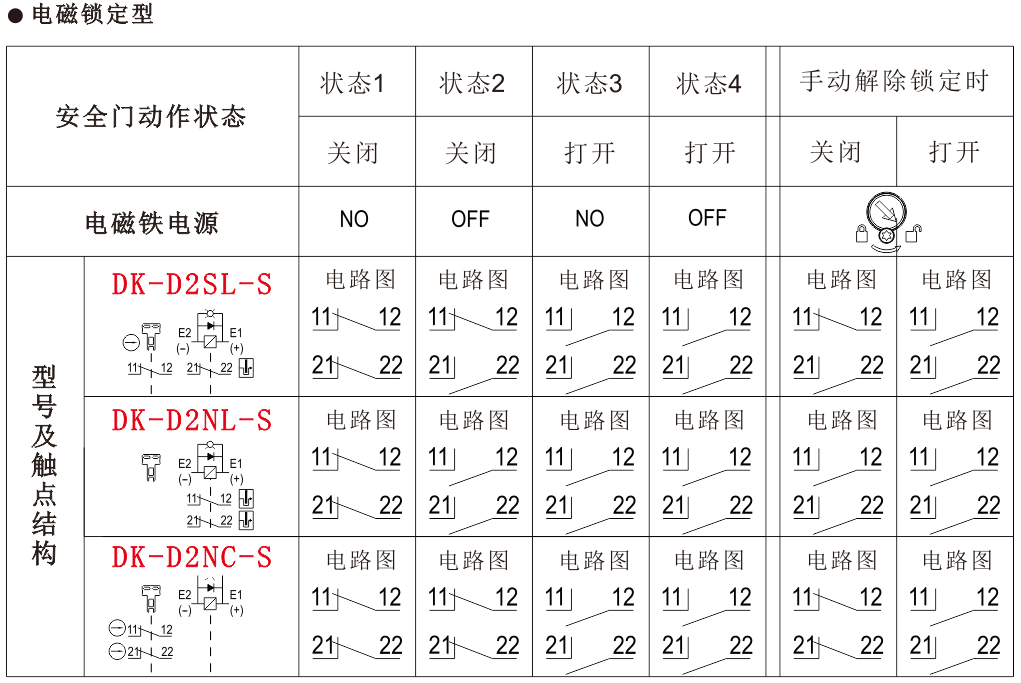

Electromagnetic locking type

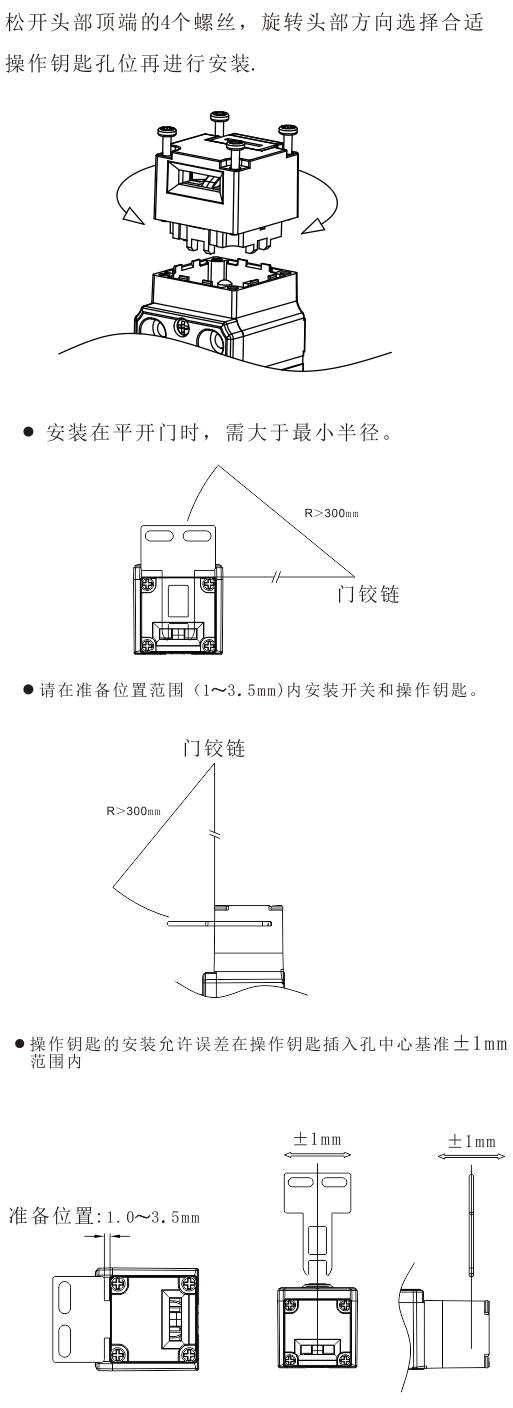

Install
| Shell material | Pa66 flame retardant | |
| Contact material | Silver alloy gold plating | |
| Protection level | IP67 (EN60947-5-01, except for key operation hole) | |
| service life | Mechanical over 1 million cycles, electrical over 300000 cycles | |
| Tensile strength during locking | 1300N | |
| Rated insulation voltage | 300V | |
| Rated impulse withstand voltage | 2.5KV | |
| Rated open thermal current | 10A | |
| Usage category | AC-15 | DC-13 |
| Rated working voltage |
240V |
30V |
| Rated working current | 3A | 2.3A |
| Rated limit short-circuit current | 1000A | |
| Forced Separation Action force | >60N | |
| Forced Separation Distance | >10mm | |
| Allow operation speed | 0.05~0.5m/s | |
| Allow operating frequency | Maximum 20 operations per minute | |
| ambient temperature | -20 ℃~60 ℃, no freezing | |
| ambient humidity | Below 83% RH | |
| indicator light | |||||
| Rated voltage | 24VDC | ||||
| Rated current | 1mA | ||||
| Light source color | green | ||||
| Switch and model | |||||
| Head material |
Electromagnetic voltage indicator light |
Locking/releasing method |
Contact type (Door monitoring lock monitoring) |
Tube mouth size | model |
| resin |
Electromagnetic coil: DC24 green |
Mechanical locking Electromagnetic release |
1NC 1NC | M20 | DK-D2SL-K |
| No 2NC | M20 | DK-D2NL-K | |||
|
Mechanical locking Mechanical release |
1NC 1NC | M20 | DK-D2SL-S | ||
| No 2NC | M20 | DK-D2NL-S | |||
| 2NC None | M20 | DK-D2NC-S | |||
|
DK Electromagnetic Two Group Contact Series |
|
