Product Features
▲ The industry's smallest
The laser sensor with built-in amplifier is born
Adopting specialized custom IC and optical design, effectively utilizing the excellent directionality and recognizability unique to lasers, while achieving high-precision detection in the industry's smallest size; In addition, lasers with safety level 1 (JIS/IEC/FDA) are not restricted by usage environment and geographical location.

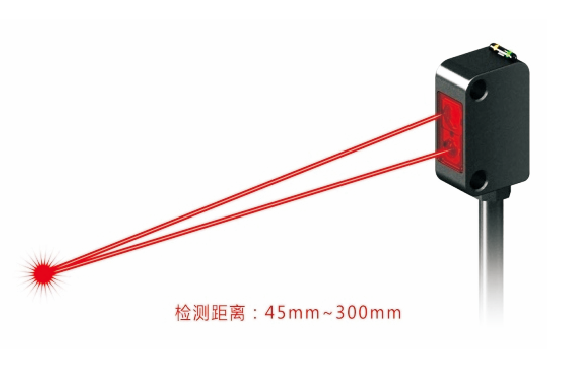

▲Light point reflection type
Small object detection type
Can detect high-precision metal wires with a minimum diameter of 0.01mm.

The detection distance reaches 300mm and can be used for a wide range of purposes.

Spot size: below Φ 1mm (typical example at a distance of 300)

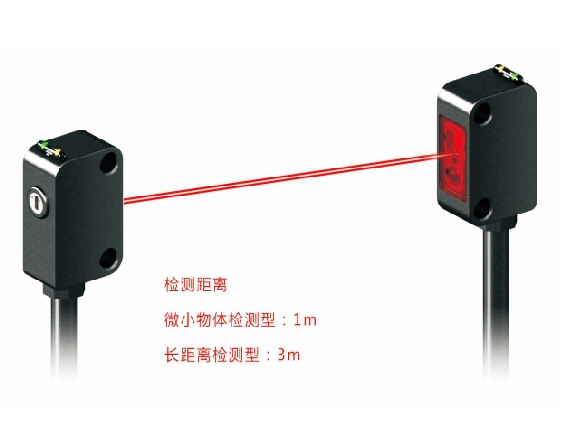

▲Through type
Small object detection type

Due to the diffusion of light, the density of the beam is reduced, and the detours of light are minimized, so even the faint changes in light intensity produced by small objects are not missed.

Long distance detection type

Even for 3m long distance detection, high-precision detection with less light detours can be achieved. Spot size: approximately 8x5.5mm (typical visual example at a distance of 1m).
