DIKC background suppression laser sensor JR series
  • DIKC background suppression laser sensor JR series
  • DIKC background suppression laser sensor JR series
DIKC background suppression laser sensor JR series

Product Features
▲ According to the BGS conversion method, it can correspond to various combinations of detected objects/backgrounds.

▲ According to the unique external interference light avoidance algorithm, it can also counteract variable frequency fluorescent lamps.

▲ The action distance is also small, which can detect small step differences.

▲ Built in multi turn potentiometer for fine adjustment of sensitivity.

▲ The P65 protective structure and mutual interference prevention function comply with EN specifications and standards.

▲ The light spot is around 1MM and can detect small objects.

Hotline:13028835088

Product Introduction

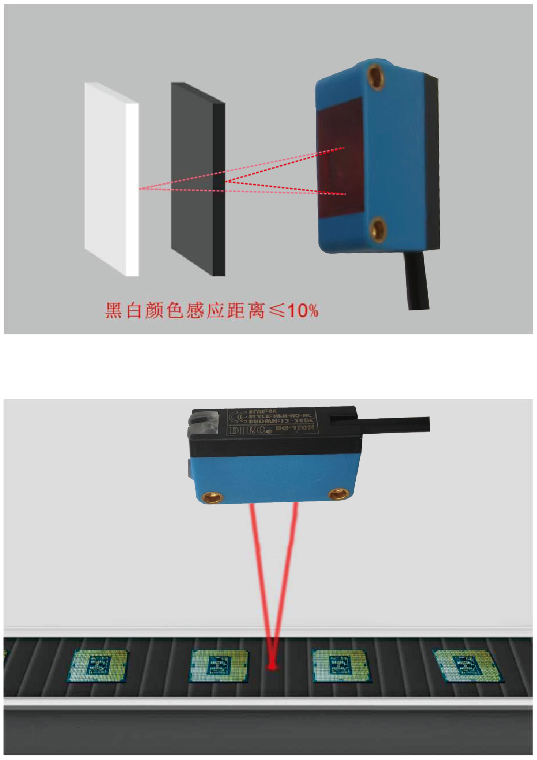

▲ Perfect application of BGS function

·Not affected by color, the error range of black and white colors is controlled within 10%,Even when changing production lines for workpieces with different colors, no adjustment is requiredDetect distance.

·Not easily affected by color changes of detected objects, whether black or whiteIt can be detected at almost the same distance.

·When the workpiece is separated from the background object, such as changing the background color or when someone passes byIt doesn't affect either.


▲ Strong anti-interference ability

·According to the unique external interference light avoidance algorithm, it can also counteract variable frequency fluorescent lamps


▲ High precision

·The action distance is also small, which can detect small differences.


▲ Protection structure

·IP65 protection structure, preventing mutual interference function, is in compliance with EN specification standards.

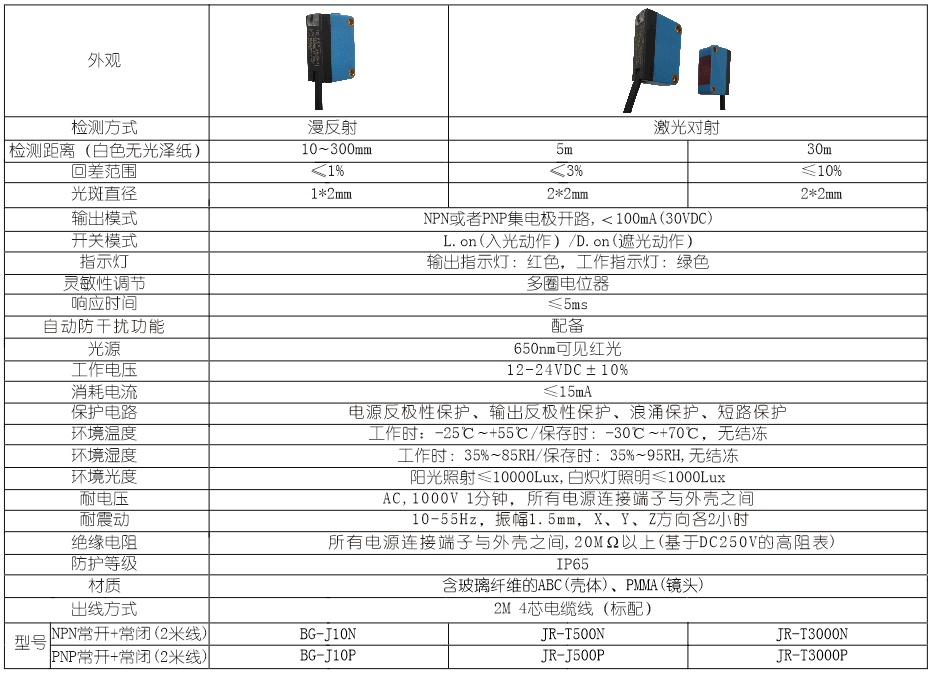

Product parameters and selection

DIKC background suppression laser sensor JR series
