(MECA\SUPER'FINE\HIGH SPEED).

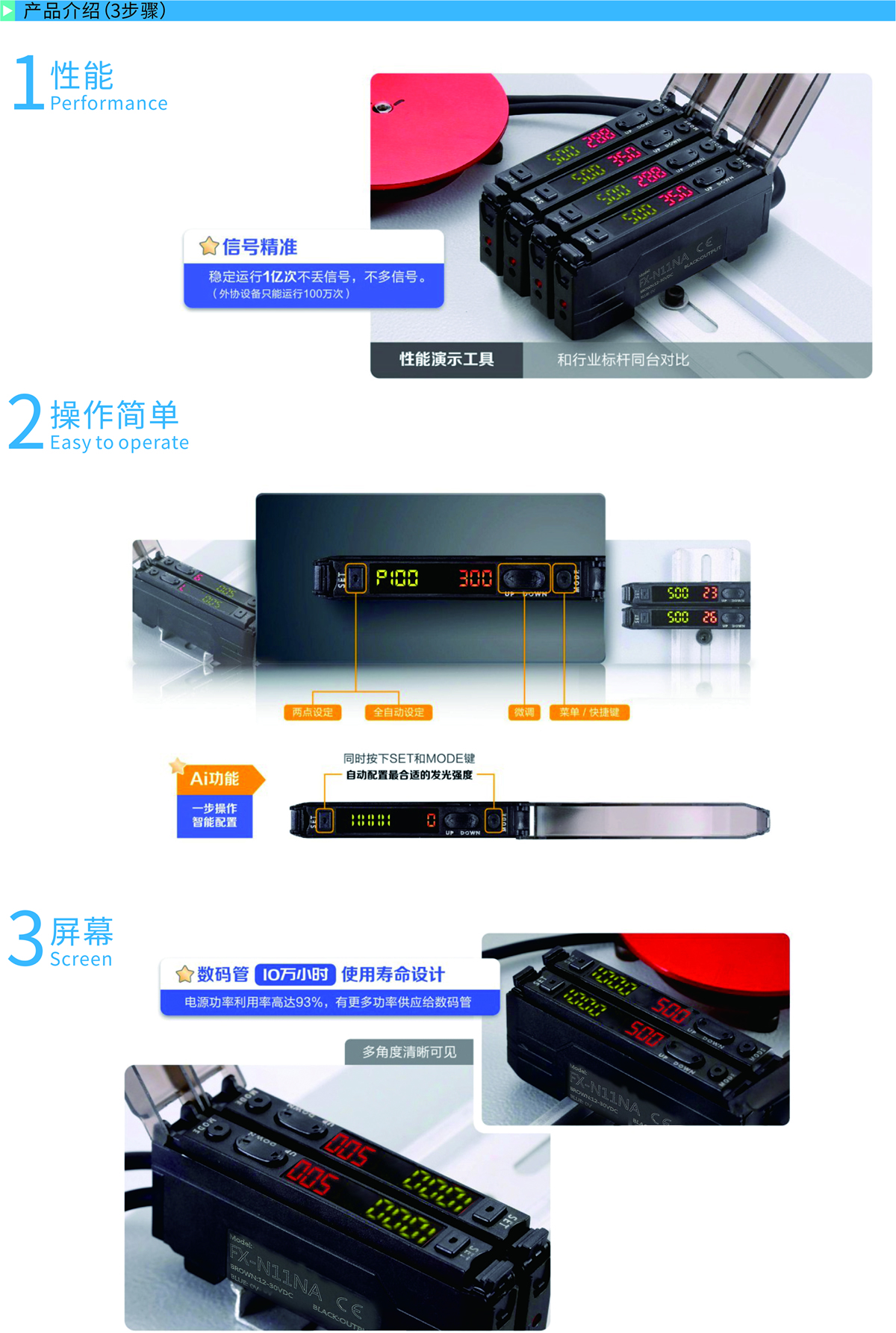

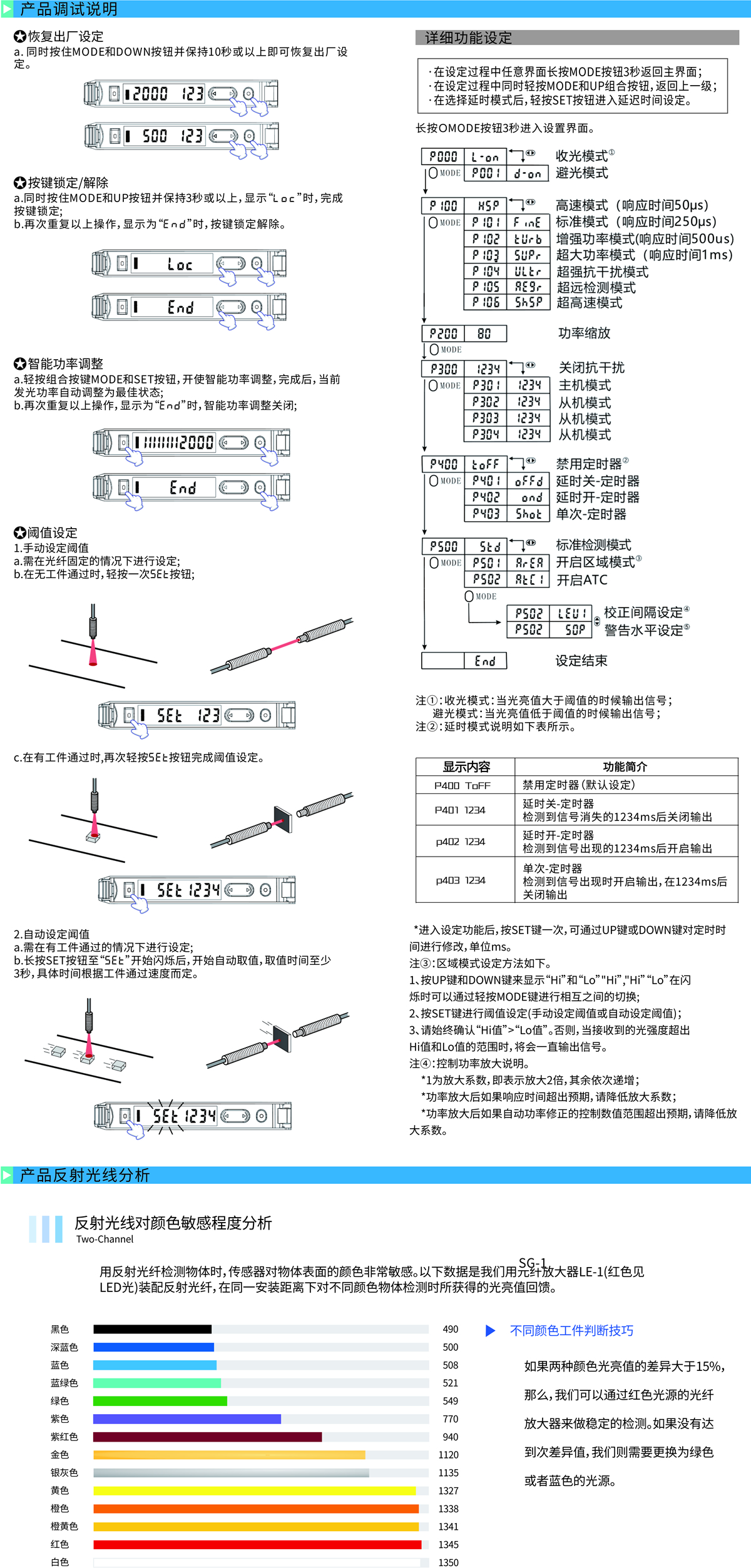

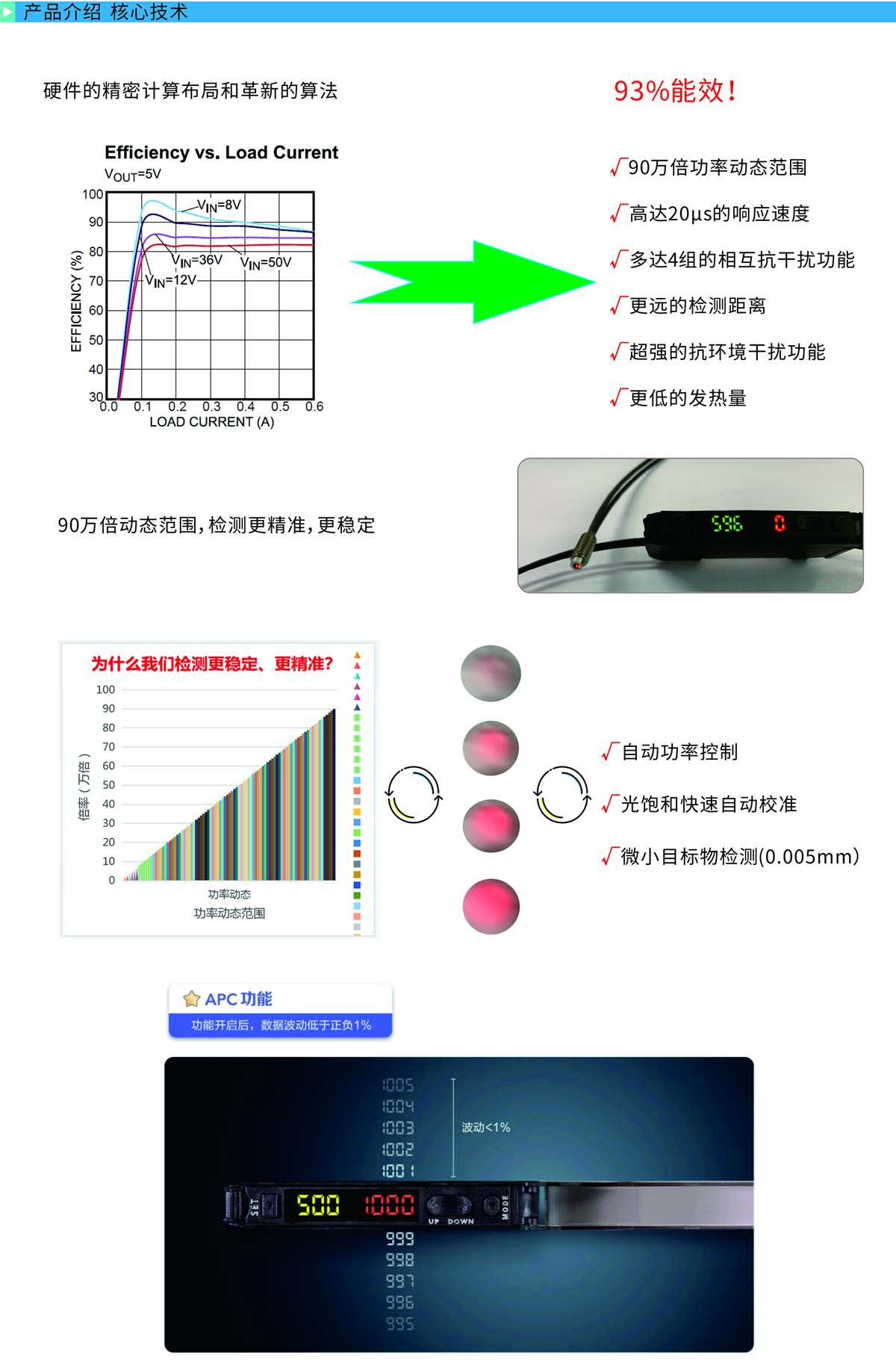

|Powerful functional components

Counting, zero point migration, percentage, anti light interference, rising and falling edge (DTM), numerical amplification, normally open and normally closed switching, delay and other functions.

|The fastest response speed is 50 μ s

Complete circuit protection; Reverse electrode, overvoltage, overcurrent protection.

|Stable performance, super cost-effective

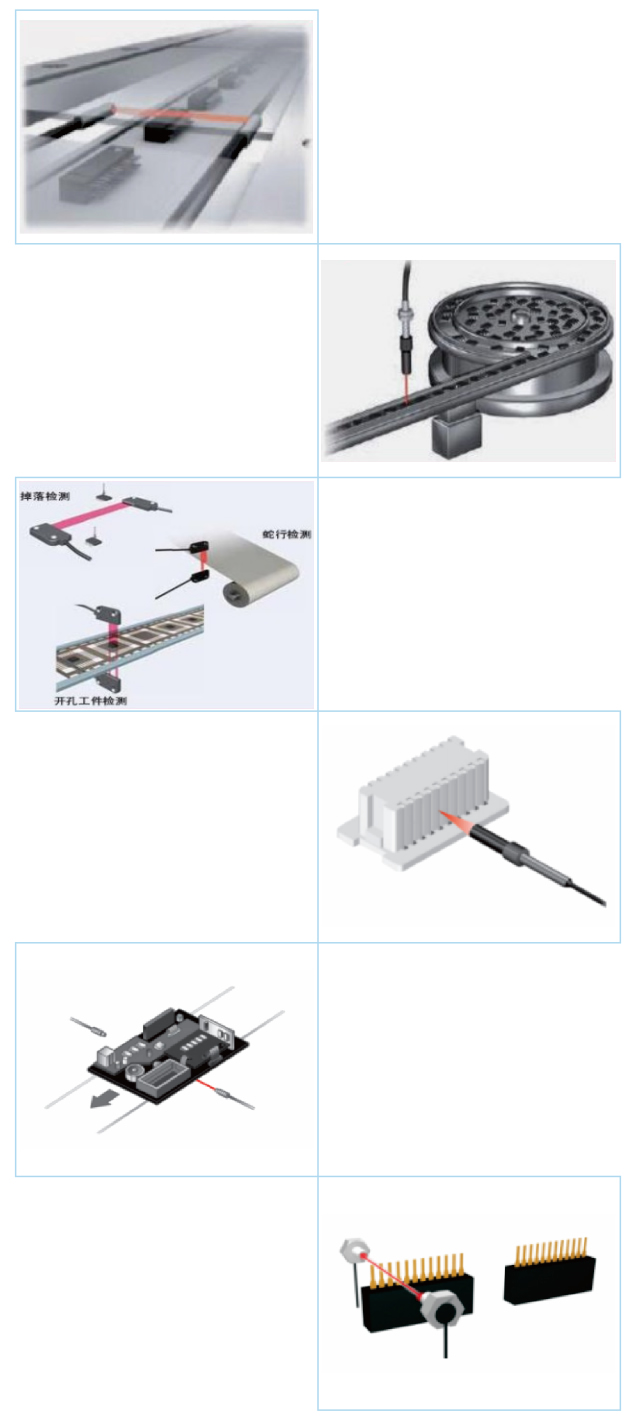

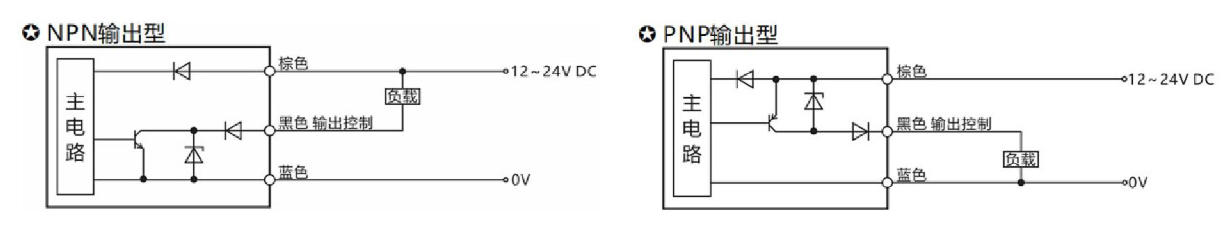

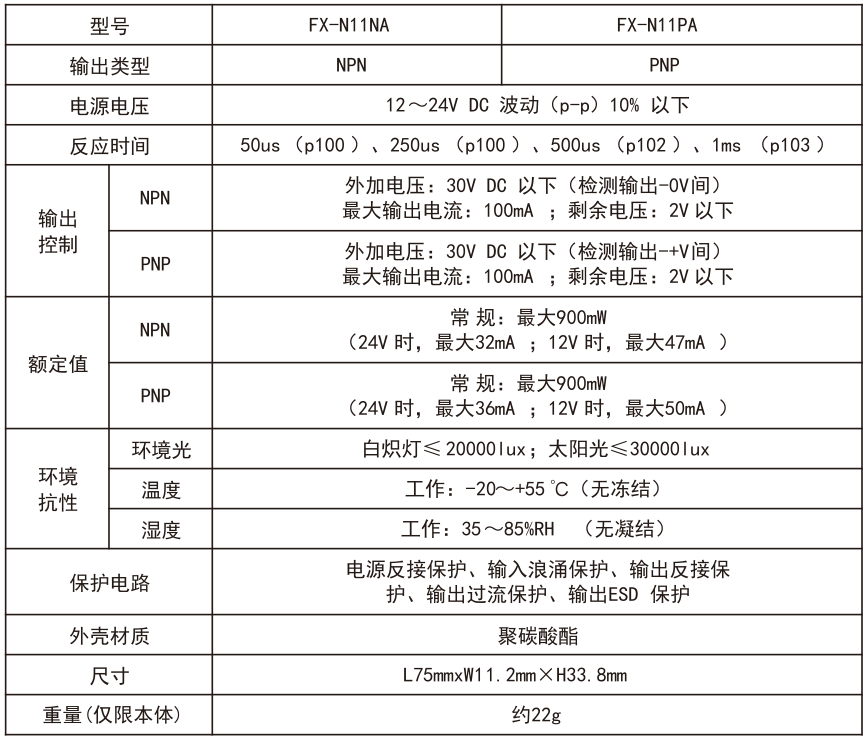

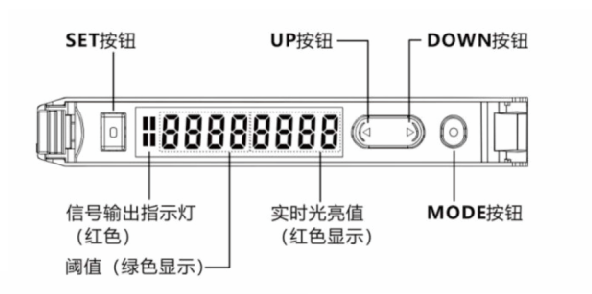

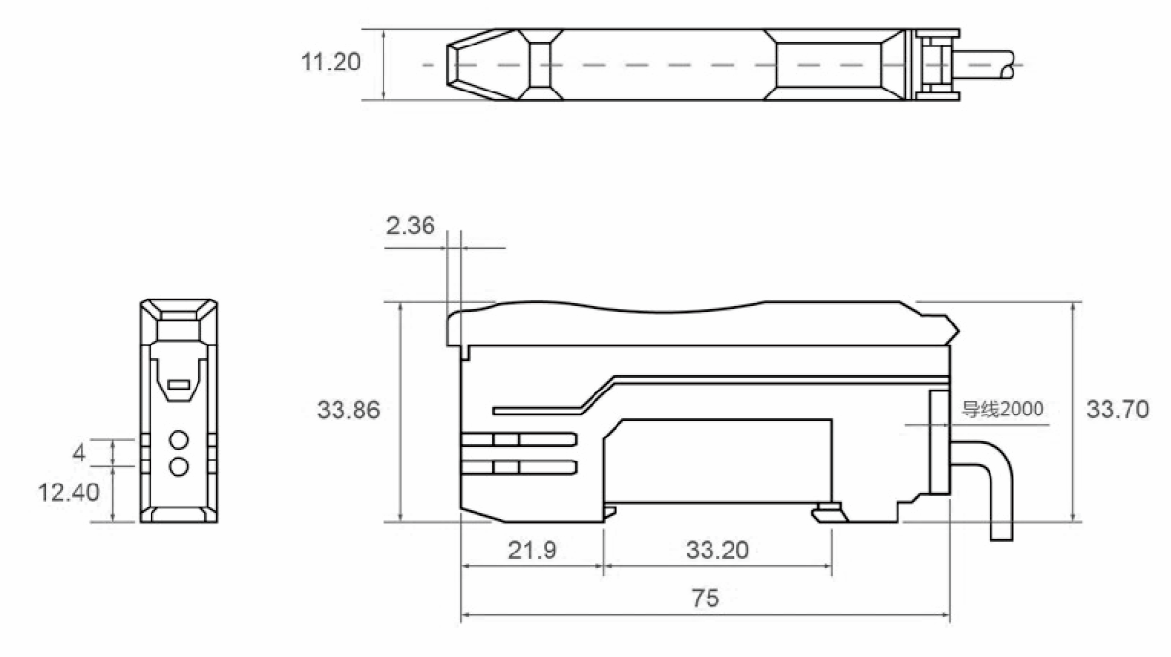

Component Name

install

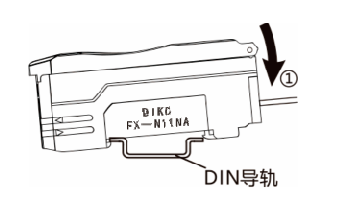

a. As shown in the figure below, clamp the left side of the fiber optic sensor amplifier onto the DIN rail, and press down firmly in the direction of arrow ① on the right side until you hear a locking sound.

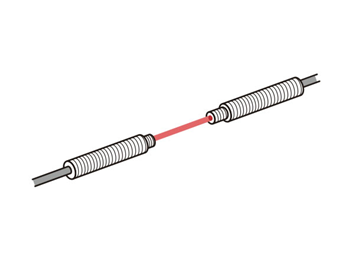

Fiber Connections

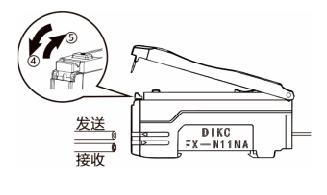

a. As shown in the figure below, open the protective cover and pull the locking lever downwards in the direction of arrow ④;

b. Insert the optical fiber into the corresponding position;

c. Pull the locking lever upwards in the direction of arrow ⑤ to complete the connection.
